Formwork Accessories Scaffolding Levelling Jack With Swivel Base

Product Details:

Place of Origin:	China
Brand Name:	MF
Certification:	ISO
Model Number:	48mm diameter bar

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	$2-5/pcs

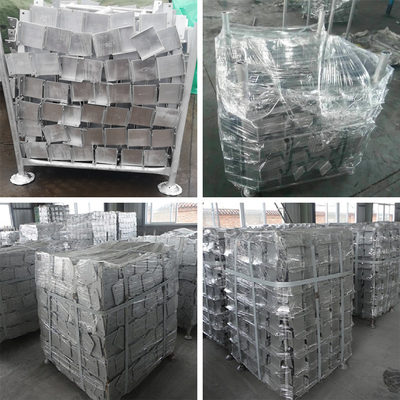

Packaging Details:	steel pallet.
Delivery Time:	5-15days after received deposit
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Weight:	2.5-5.6kg/pcs	Adjustable Height:	300mm~700mm
Color:	Silver Or Customized	Load Capacity:	5000 Lbs
Base Plate Size:	6x6 Inches	Rod Type:	Hollow Tube Or Solid Bar
Surface Treatment:	Electric Galvanized, Hot Dip Galvanized	Application:	Scaffolding
High Light:	Swivel Base Scaffolding Levelling Jack , Formwork Scaffolding Levelling Jack

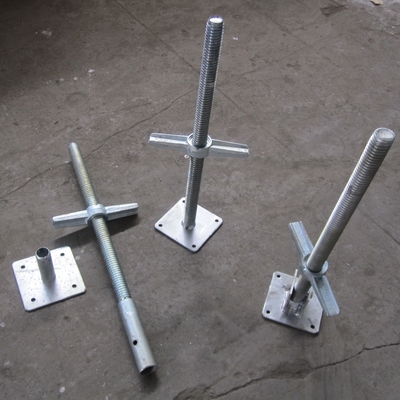

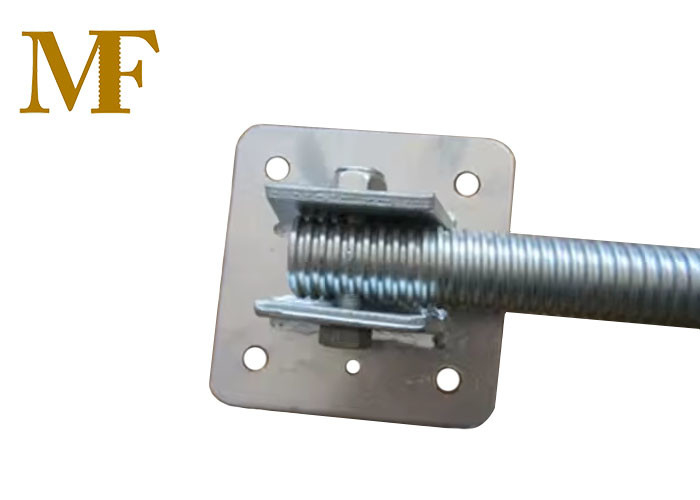

Formwork Accessories Scaffolding Levelling Jack With Swivel Base

These adjustable bases give stability to the structure with desired adjustments at the base. Base Jack used as the base of the scaffolding system, to adjust the rough ground into the same level, and stablized the system. We can supply all kinds of base jack with high quality with good price

1.Soild/hollow/U head adjustable base jack.
2.Pipe dia: form 30mm to 48mm(solid and hollow)
3.Material: carbon steel
4.Rigid base plate : 120*120*4mm, 6mm×150mm×150mm, 6mm*140mm*140mm
5.Adjustable length from 225mm to 900mm
6.Surface finish: galvanized/ painted

Formwork Accessories Scaffolding Levelling Jack With Swivel Base

Product name	Swivel Jack base
Material	ST-52 carbon steel
Size	38x4x500mm
Surface treatment	Hot Dip Galvanized, Electro Galvanized, Powder Coated
Weight	3.5Kg
Application	Construction scaffold
Length	300-700mm or customized
Diameter of threaded rod	30-48mm or customized
Type	Hollow tube or solid bar
