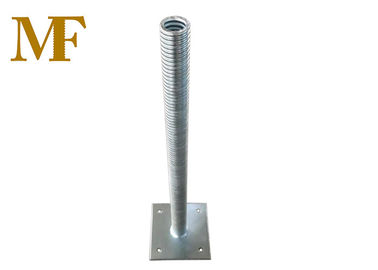

EN74 Scaffolding Steel Jack DIN4425 Standard Adjustable Screw Jack Base

EN74 Scaffolding Steel Jack DIN4425 Standard Adjustable Screw Jack Base

  • EN74 Scaffolding Steel Jack DIN4425 Standard Adjustable Screw Jack Base
  • EN74 Scaffolding Steel Jack DIN4425 Standard Adjustable Screw Jack Base
EN74 Scaffolding Steel Jack DIN4425 Standard Adjustable Screw Jack Base
Product Details:
Place of Origin: China
Brand Name: MF
Certification: ISO9001
Model Number: M38*600mm
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: Adjustable jack base is in pallet or as you like
Delivery Time: 10-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs/week
Contact Now
Detailed Product Description
Name: Jack Base And Nut Type: Hollow Tube
Length: 300mm~700mm Weight: 2.5-5.6kg/pcs
Finish: Corrosion Resistance Application: To Hold Timber Beams
High Light:

scaffold base plate

,

u head jack

EN74 Scaffolding Steel Jack DIN4425 Standard Adjustable Screw Jack Base



  • Consisted of high quality building materials Q235 round steel, screw nut, screw base
  • Used for bridge construction and scaffolding to achieve cohesion between screw parts
  • Based on holding the standard of scaffold, adjusting the height making whole scaffolding more stable
  • Customized sizes, manufactured according to customer requirements



Specification of EN74 Scaffolding Steel Jack DIN4425 Standard Adjustable Screw Jack Base:



Product Name Size Finish
Solid Screw Jack Base Length:300mm~700mm
Dia:35mm
Plate size:135*135*5mm
Electroplate, hot dip galvanized, black
Hollow Screw Jack Base Length:300mm~700mm
Dia:35mm
Plate size:135*135*5mm
Electroplate, hot dip galvanized, black
Hollow Screw Jack Base Length:300mm~700mm
Dia:35mm
Plate size:150*150*5mm
Electroplate, hot dip galvanized, black
U head Screw Jack Base Length:300mm~700mm
Dia:35mm
U size:100*150*5mm
Electroplate, hot dip galvanized, black




Features of EN74 Scaffolding Steel Jack DIN4425 Standard Adjustable Screw Jack Base:

  • Corrosion resistance
  • Fine finish
  • Wide range of adjustable base plates and U-head jacks
  • High-load bearing capacity
  • Standard and self-cleaning rolled thread

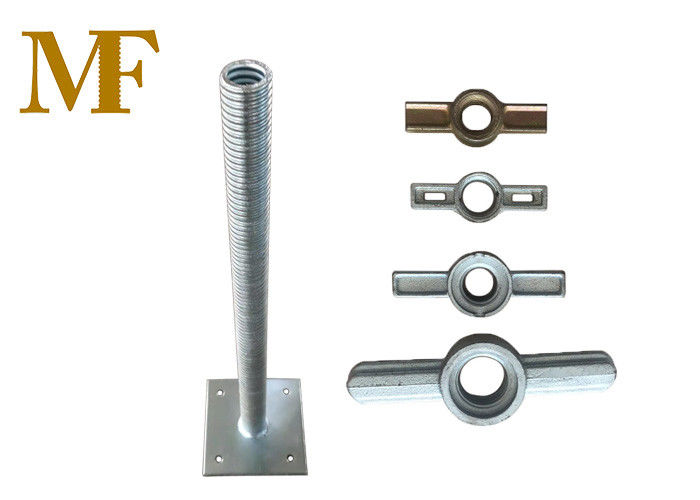

EN74 Scaffolding Steel Jack DIN4425 Standard Adjustable Screw Jack Base 0

Our advantages:



  • Reply you within 24 hours
  • Your feedback is highly valued
  • Update price and new products regularly
  • Professional manufacturer with powerful manufacturing capacity
  • Extensive and comprehensive quality control system
  • Excellent products with competitive price
  • Efficient service on pre and after sale
  • Full energy with affluent experience team
