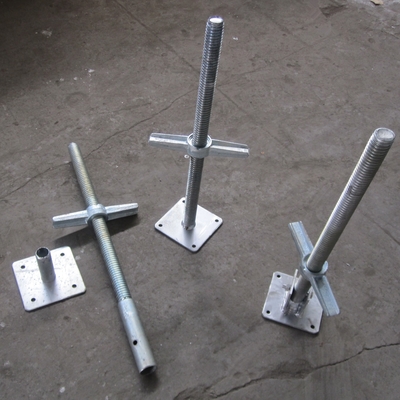

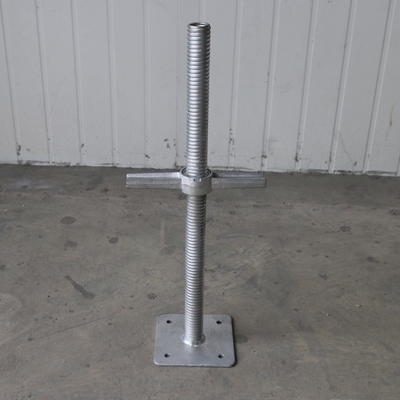

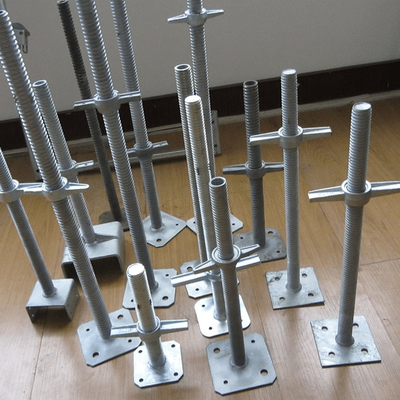

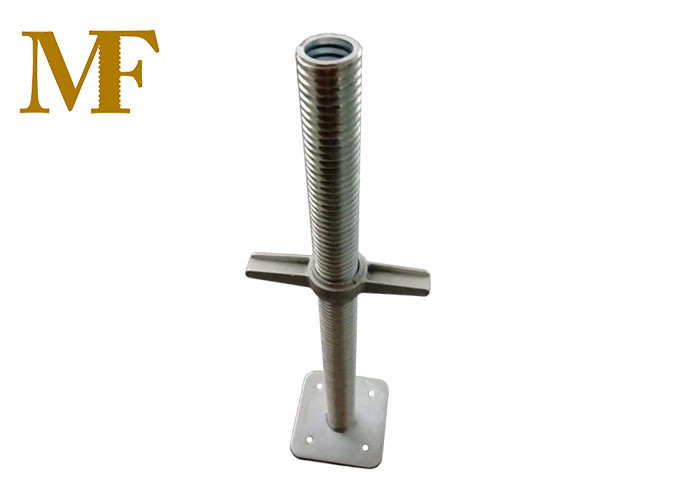

Galvanized Scaffolding Jack Base Screw Jack Stands Shoring Jack Scaffold Base Plate

Galvanized Scaffolding Jack Base Screw Jack Stands Shoring Jack Scaffold Base Plate

  • Galvanized Scaffolding Jack Base Screw Jack Stands Shoring Jack Scaffold Base Plate
  • Galvanized Scaffolding Jack Base Screw Jack Stands Shoring Jack Scaffold Base Plate
  • Galvanized Scaffolding Jack Base Screw Jack Stands Shoring Jack Scaffold Base Plate
  • Galvanized Scaffolding Jack Base Screw Jack Stands Shoring Jack Scaffold Base Plate
Galvanized Scaffolding Jack Base Screw Jack Stands Shoring Jack Scaffold Base Plate
Product Details:
Place of Origin: China
Brand Name: MF
Certification: ISO
Model Number: M30*600mm
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: ~
Packaging Details: /
Delivery Time: 20~30days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 50000pcs/mouth
Contact Now
Detailed Product Description
Name: Scaffold Base Plate Type: Hollow Tube And Solid Bar
Length: 300mm~700mm Weight: 2.6-5.6kg/pcs
Finish: Electric Galvanized Application: Scaffolding System
Material: Q235/Q245 Material: Q235/Q245
Color: Sliver/Customized Usage: Construction
Type: Heavy Duty Type: Heavy Duty
Color: Silver/Customized
High Light:

galvanized scaffolding jack screw

,

300mm scaffolding jack screw

,

galvanized scaffold screw jacks for sale

Description of Galvanized Scaffolding Jack Base Screw Jack Stands Shoring Jack Scaffold Base Plate:



We have variety of system Jacks, Screw Hollow Jack, System Adjustable solid Jack, Universal Jack, Adjustable U head Jack’ of different diameters and Length.

Adjustable Leveling Galvanized Screw Jack with Base Plate locateS in the bottom of the standards, it provides adjustment for variations in ground levels,our adjustable screw jacks have a safe working load about 4 tons.



Specification of Galvanized Scaffolding Jack Base Screw Jack Stands Shoring Jack Scaffold Base Plate

Galvanized Scaffolding Jack Base Screw Jack Stands Shoring Jack Scaffold Base Plate
DIAMETER
MM
LENGTH
MM
PLATE SIZE
MM
 Surface
WEIGHT
KGS
Φ30(SOLID)
400
120X120X4
GALVANIZED/PAINTED
2.61
Φ30(SOLID)
600
120X120X4
GALVANIZED/PAINTED
3.58
Φ32(SOLID)
400
120X120X4
GALVANIZED/PAINTED
2.9
Φ32(SOLID)
600
120X120X4
GALVANIZED/PAINTED
4.01
Φ34(SOLID)
400
140X140X4
GALVANIZED/PAINTED
3.41
Φ34(SOLID)
600
140X140X4
GALVANIZED/PAINTED
4.67
Φ38(HOLLOW)
600
150X150X5
GALVANIZED/PAINTED
3.39
Φ48(HOLLOW)
600
150X150X6
GALVANIZED/PAINTED
4.33




Features of Galvanized Scaffolding Jack Base Screw Jack Stands Shoring Jack Scaffold Base Plate​:

  • both square base plate and U head plate are possible
  • Wide range of adjustable base plates and U-head jacks
  • High-load bearing capacity
  • Standard and self-cleaning rolled thread

Galvanized Scaffolding Jack Base Screw Jack Stands Shoring Jack Scaffold Base Plate 0


Please let we know the specifications of bar diameter. length, plate type and size, quantity, packing, etc, best price will be offered accordingly.
