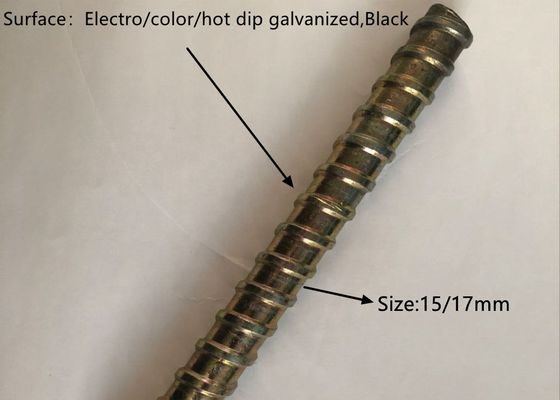

D12 D15 D20 Concrete Wall Formwork Tie Rod 15/17mm Tie Rod Tie Nut Wing Nut

D12 D15 D20 Concrete Wall Formwork Tie Rod 15/17mm Tie Rod Tie Nut Wing Nut

  • D12 D15 D20 Concrete Wall Formwork Tie Rod 15/17mm Tie Rod Tie Nut Wing Nut
  • D12 D15 D20 Concrete Wall Formwork Tie Rod 15/17mm Tie Rod Tie Nut Wing Nut
  • D12 D15 D20 Concrete Wall Formwork Tie Rod 15/17mm Tie Rod Tie Nut Wing Nut
  • D12 D15 D20 Concrete Wall Formwork Tie Rod 15/17mm Tie Rod Tie Nut Wing Nut
D12 D15 D20 Concrete Wall Formwork Tie Rod 15/17mm Tie Rod Tie Nut Wing Nut
Product Details:
Place of Origin: China
Brand Name: MF
Certification: ISO
Model Number: 15/17mm
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: ~
Packaging Details: /
Delivery Time: 20~30days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 50000pcs/mouth
Contact Now
Detailed Product Description
Application: Concrete Construction Raw Material: 45#
Thread Size: 15/17mm Thread Pitch: 15/17*6.35mm
Use: Tie Rod System Length: 3000mm
Material: Q235/Q245 Color: Sliver/Customized
Usage: Construction Type: Heavy Duty
Color: Silver/Customized
High Light:

D20 Concrete Wall Formwork Tie Rod

,

15mm Concrete Wall Formwork Tie Rod

D12 D15 D20 Concrete Wall Formwork Tie Rod 15/17mm Tie Rod Tie Nut Wing Nut



We supply 10/12mm, 15/17mm, 20/22mm tie rod  and tie nut with good price and quality, please feel free to contact us for price and delivery.



Our main products:


1. Formwork accessories:nut;hex nut;water stop;tie rod;assembly lock;formwork clamp;pin etc.
2. Scaffolding accessories:scaffolding clamp;cuplock scaffolding;Tripod;Shoring prop etc.

3. other accessories: wedges, brackets,D props,B props,tie rod,jack base,U jack,rapid clamps,casted formwork nuts and scaffolding clamps and other accessories.

We can produce according to your drawings or samples.



Formwork Accessories 3 Meter 15/17mm Size Tie Rods For Construction



Name Formwork Cold Rolled Tie Rolled Metric Thread Tie Rod 10/12mm 15/17mm 20/22mm Fromwork tie nut
Diameter D10/12mm
D15/17mm
D20/22mm
D10/12mm
D15/17mm
D20/22mm
Weight 0.75kg/meter
1.50kg/meter
2.25kg/meter
0.3-1.5kg/pcs
Breaking Load 90KN
140KN
260KN
90-200KN
Length 0.5-6m QT450
Surface Treatment Galvanized or black Galvanized or black
Packing in bundles woven bag+carton
What else we have Tie Nut, Wing Nut, Water Barrier Nut, Combination Nut, Steel Cone, Hex Nut etc. Tie Nut, Wing Nut, Water Barrier Nut, Combination Nut, Steel Cone, Hex Nut etc.
