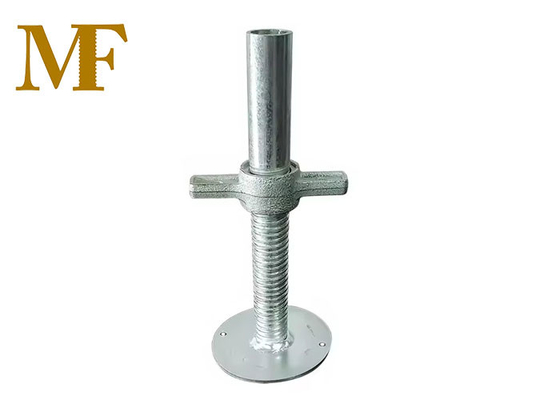

Ringlock System Base Jack For Scaffolding Construction With Round Base Plate

Ringlock System Base Jack For Scaffolding Construction With Round Base Plate

  • Ringlock System Base Jack For Scaffolding Construction With Round Base Plate
  • Ringlock System Base Jack For Scaffolding Construction With Round Base Plate
  • Ringlock System Base Jack For Scaffolding Construction With Round Base Plate
  • Ringlock System Base Jack For Scaffolding Construction With Round Base Plate
Ringlock System Base Jack For Scaffolding Construction With Round Base Plate
Product Details:
Place of Origin: China
Brand Name: MF
Certification: ISO
Model Number: 48mm diameter bar
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: ~
Packaging Details: /
Delivery Time: 20~30days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 50000pcs/mouth
Contact Now
Detailed Product Description
Weight: 2.5-5.6kg/pcs Adjustable Height: 300mm~700mm
Color: Silver Or Customized Load Capacity: 5000 Lbs
Base Plate Size: 6x6 Inches Rod Type: Hollow Tube Or Solid Bar
Surface Treatment: Electric Galvanized, Hot Dip Galvanized Application: Scaffolding
Material: Q235/Q245 Material: Q235/Q245
Color: Sliver/Customized Usage: Construction
Type: Heavy Duty Color: Silver/Customized
High Light:

Round Plate Base Jack

,

Scaffolding Construction Base Jack

,

Ringlock System Base Jack

Ringlock System Base Jack For Scaffolding Construction With Round Base Plate



These adjustable bases give stability to the structure with desired adjustments at the base. Base Jack used as the base of the scaffolding system, to adjust the rough ground into the same level, and stablized the system. We can supply all kinds of base jack with high quality with good price



1.Soild/hollow/U head adjustable base jack.
2.Pipe dia: form 30mm to 38mm(solid and hollow)
3.Material: carbon steel
4.Rigid base plate : 120*120*4mm, 6mm×150mm×150mm, 6mm*140mm*140mm
5.Adjustable length from 225mm to 900mm
6.Surface finish: galvanized/ painted



Ringlock System Base Jack For Scaffolding Construction With Round Base Plate

Regular size of the Base Jack

Scaffold JACK BASE with square plate
DIAMETER
MM
LENGTH
MM
PLATE SIZE
MM
SURFACE TREATMENT
WEIGHT
KGS
Φ30(SOLID)
400
120X120X4
GALVANIZED/PAINTED
2.61
Φ30(SOLID)
600
120X120X4
GALVANIZED/PAINTED
3.58
Φ32(SOLID)
400
120X120X4
GALVANIZED/PAINTED
2.9
Φ32(SOLID)
600
120X120X4
GALVANIZED/PAINTED
4.01
Φ34(SOLID)
400
140X140X4
GALVANIZED/PAINTED
3.41
Φ34(SOLID)
600
140X140X4
GALVANIZED/PAINTED
4.67
Φ38(HOLLOW)
600
150X150X5
GALVANIZED/PAINTED
3.39
Φ48(HOLLOW)
600
150X150X6
GALVANIZED/PAINTED
4.33



Ringlock System Base Jack For Scaffolding Construction With Round Base Plate

Ringlock System Base Jack For Scaffolding Construction With Round Base Plate 0
