Plastic Conduit Cones Tube Spacers 20mm Fromwork Tie Bar

Plastic Conduit Cones Tube Spacers 20mm Fromwork Tie Bar ​

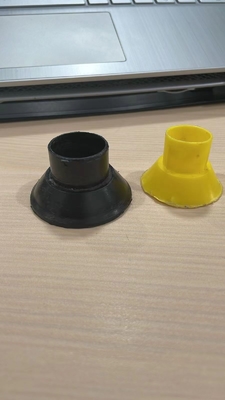

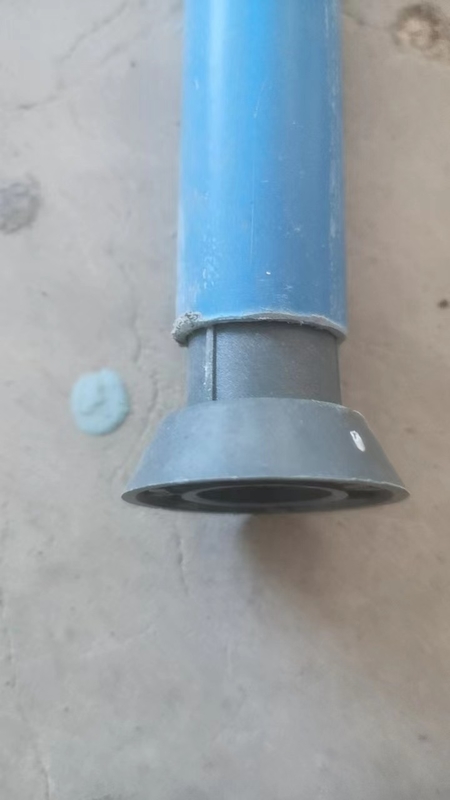

Plastic cones are typically used with PVC tube. The cones are assembled with plastic conduit, to recess the conduit from the concrete. Both cones are removed after the concrete is poured.

We have full sizes for plastic conduit cones, for bar from 12mm to 28mm, both male cones and female cones, please contact us for size list.

We supply various formwork accessories for concrete construction, like formwork tie rod, wing nuts, concrete anchor nuts, hex nuts, connection tie nuts, washer plates, formwork wedge clamps, formwork spring clamps, water stopper/water barrier nut, combi plate nut, plastic cones, plastic tubes, etc. Please feel free to tell us your request, we will reply with price and lead time soon.

Specification of Plastic Conduit Cones Tube Spacers 20mm Fromwork Tie Bar:

Item	Name	Drawing	H mm	H mm	T mm	W1 mm	W2 mm	W3 mm	Weight g
1	Female cone		10.5	5	1.5	22.5	33	17	2
2	Female cone		21	12.5	2.5	30	40	20	7
3	Female cone		27.5	15	2.5	43	60	32	14
4	Male cone		20	10	1	17.5	37.5		3
5	Male cone		23	10	2	22	40		6
6	Male cone		29	12	1.5	22	40		5
7	Male cone		31	12	2	21	40		7
8	Male cone		30	11	2	22	39		7
9	Male cone		38	20	2	26	40		10
10	Male cone		38	20	2	26	42		8
11	Male cone		48	30	2	24	44		14
12	Male cone		57	38	1.5	25.5	48		16
